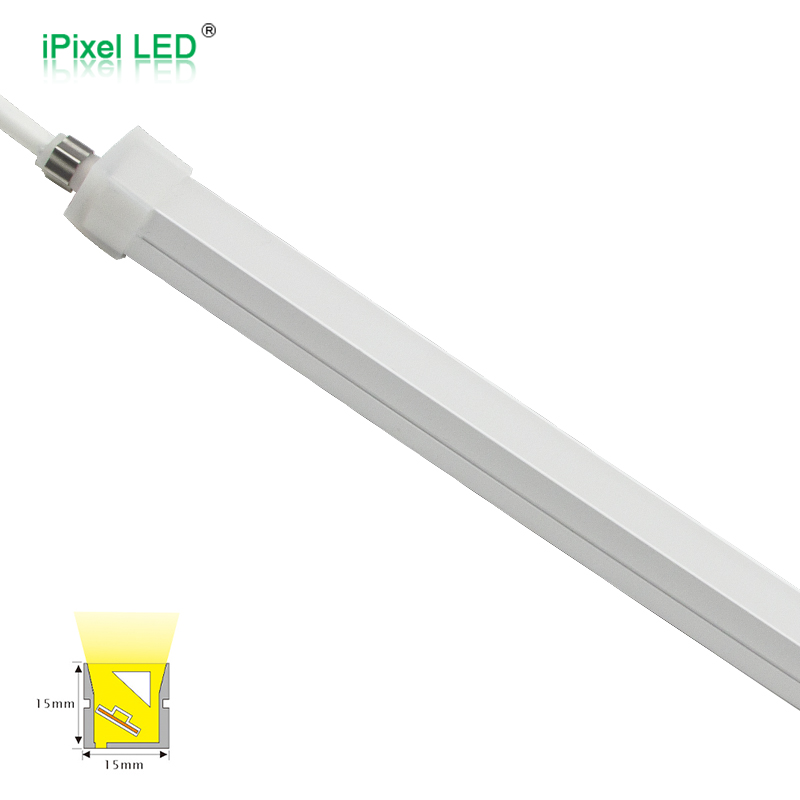

15x15mm 3D Single color LED neon flex DC12V/DC24V
· 15X15mm single-sided led neon flex strip, you can bend up and down· Light source: highlights LED chips;· Craft material: high light transmission and environmental friendlysilicone material, good flexibility of silicone material;· Optical design: Unique optical light structure design, the surface isuniform, and the light is very soft;· Exterior design: simple and fashionable, exquisite and unique bringsbetter lighting performance to indoor/outside applications;· Product certification: UL, CE, RoHS;· Environmental characteristics: salt tolerance, corrosion resistance,flame retardant, UV resistance;· Work / storage temperature: TA: -25 ~ 55 ℃ / 0 ℃ ~ 60 ℃;· Product application: signature lighting, outdoor/interiordecoration, architectural contour application;· 3 years of quality insurance, working life ≥36000 hours
Product Parameter
PN
| N015120BB1LZ(N1515) | N015120BC1LZ(N1515)
|
Voltage
| DC12V | DC24V
|
Cutting unit
| 25mm | 50mm
|
LED Quantity
| 120LEDs/m
| 120LEDs/m
|
CCT
| 3000K/4000K/6500K
| 3000K/4000K/6500K
|
Dimension
| 5000*15*15mm
| 5000*15*15mm
|
Material
| Silicon
| Silicon
|
Power
| 10W/m
| 10W/m
|
Lumens/m
| 485lm
| 485lm
|
| O.T | -25℃ ~ 60℃
| -25℃ ~ 60℃
|
Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary
Note: Length tolerance applies. Actual product dimensions may vary
