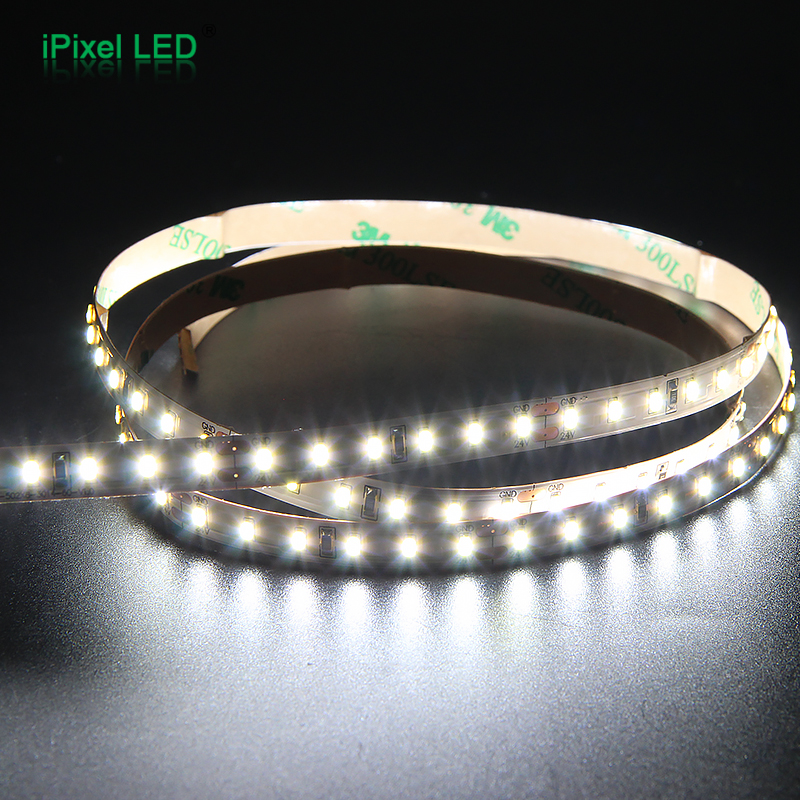

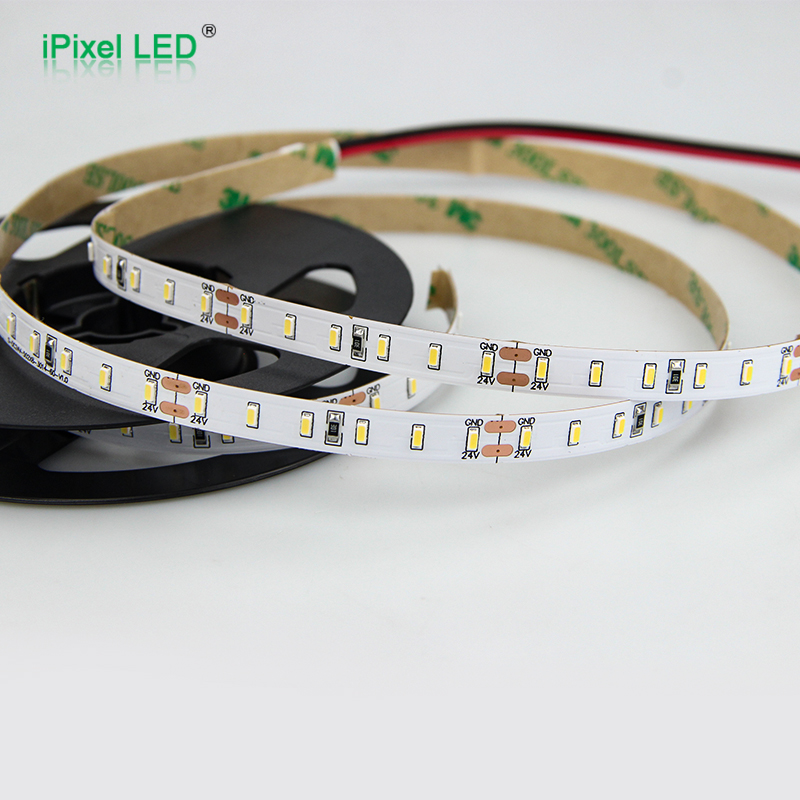

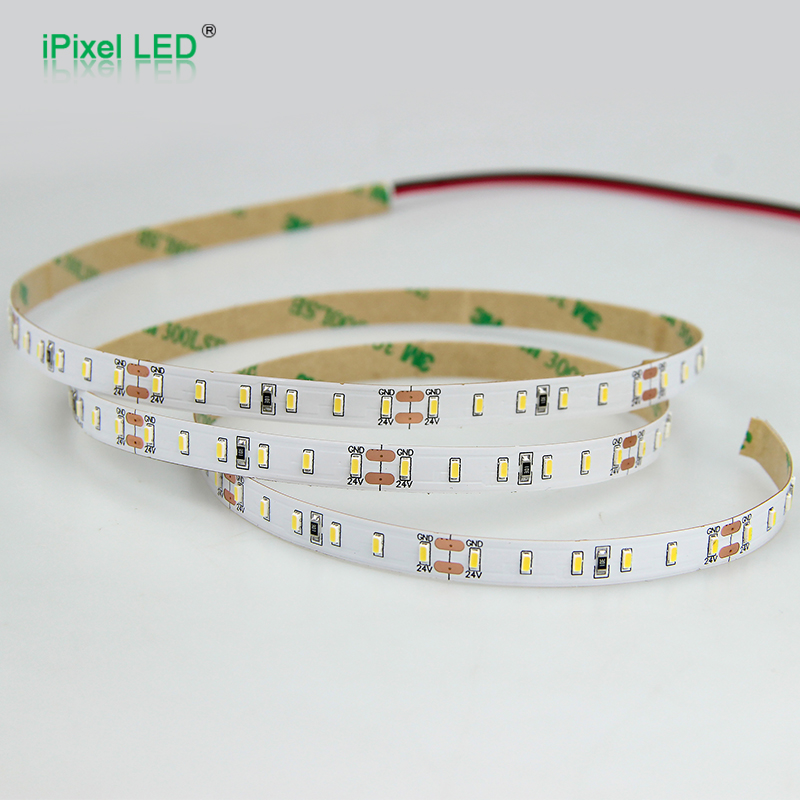

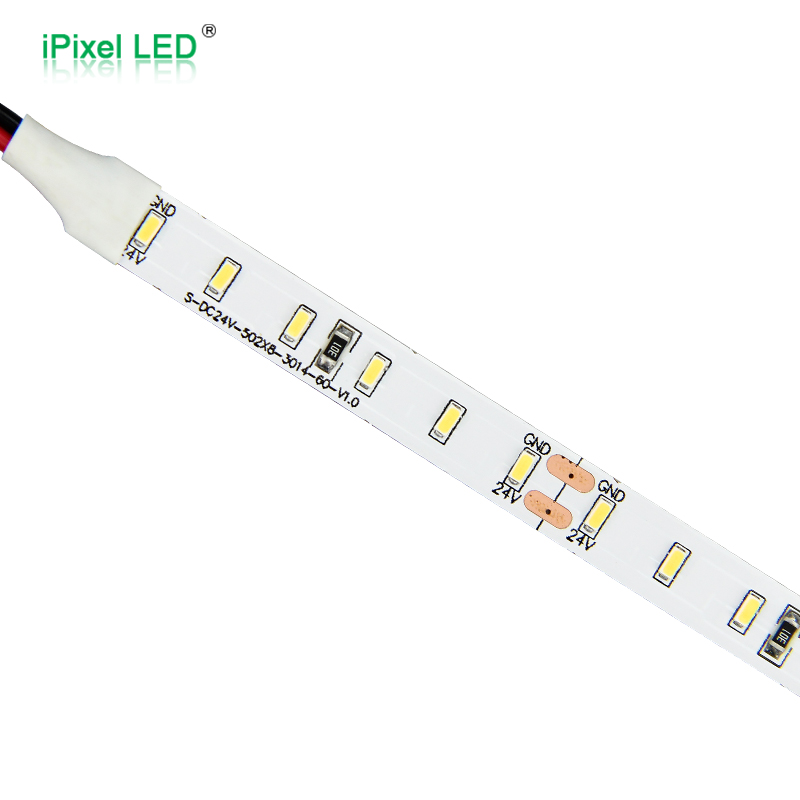

This led strip with 120pcs high quality SMD3014 LED chips
The input voltage is DC24V
Flexible PCB, the FPCB color is white
it's easy to custom High CRI or different color temperature.
Standard 5M/roll, length can be customized
| PN | S008120GC1LZ |
| Voltage | DC12V |
| Power | 10W/m |
| LED Type | SMD3014 |
| LED Density | 120LEDs/m |
| CCT | 3000K/4000K/6500K |
| Luminous Flux | 920lm |
| CRI | RA≥90 (Ra97 optional) |
| SDCM | ＜5 |
| Beam Angle | 120° |
| PCB Color | White |
| PCB Width | 50mm |
| Copper Thickness | 3oz |
| Cutting Length | 50mm |
| Size | 5000*8mm |
| Roll Length | 5m |
| Dimming | PWM |
| IP Rating | IP20/IP64/IP65/IP67 |
| Operating Temp. | -25℃ ~ 60℃ |
| Warranty | 3 years |
| Certifications | UL, CE, RoHS, REACH |
Dimension (unit:mm)
