Home > Products > Flexible LED Strips > ERP Series >    SMD2835 8mm Single Color Led Strip 120LEDs/m DC12V/DC24V
SMD2835 8mm Single Color Led Strip 120LEDs/m DC12V/DC24V SMD2835 8mm Single Color Led Strip 120LEDs/m DC12V/DC24V

SMD2835 8mm Single Color Led Strip 120LEDs/m DC12V/DC24V

- Use 2835 high brightness led, high purity gold line, SANAN chip.
- 120LEDs/M, high luminance efficiency.
- Input voltage DC12V or DC24V.
- Flexible PCB, FPC color: white., 8mm PCB width.

- Standard length 5m per roll. The length also can be customized.




Product Parameter

    PN
    S008120BB1LZ
 S008120BC1LZ
    Voltage
    DC12V
 DC24V
    LED Type
    SMD2835
 SMD2835
    Cutting unit
    25mm/3LED
  50mm/6LED
    LED Quantity    120LEDs/m
 120LEDs/m
    Color     3000K/4000K/6000K 3000K/4000K/6500K
    Lumen     900lm
 900lm
    Dimension
    5000*8mm
 5000*8mm
    Materiar    FPC FPC
    Power
    10W/m
 10W/m
    IP Rate
    IP20/IP64/IP65/IP67 IP20/IP64/IP65/IP67
    O.T    -25℃ ~ 60℃ -25℃ ~ 60℃

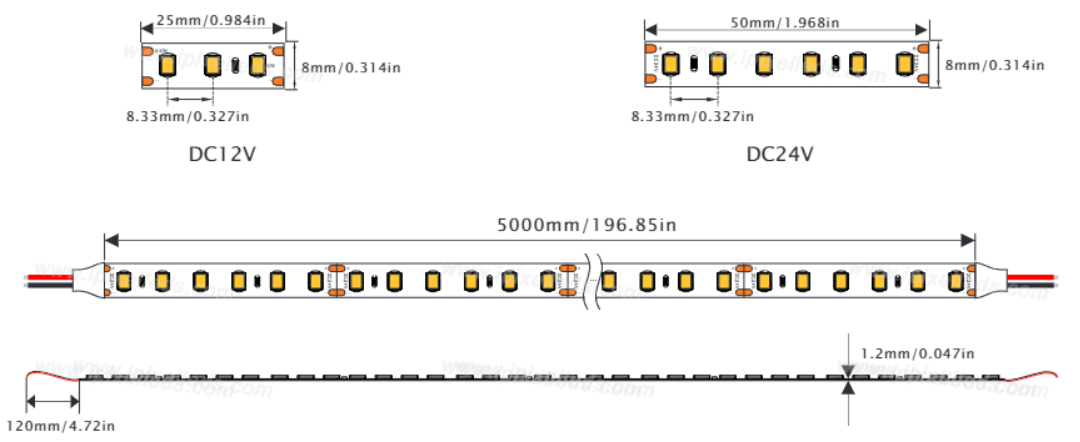

Dimension (unit:mm)



IP Rate
