- Use 2835 high brightness led, high purity gold line, SANAN chip.
- 120LEDs/M, high luminance efficiency
- Input voltage DC12V/DC24V.
- Flexible PCB, FPC color: white.
- 1+2 OZ copper thickness FPC, 6mm PCB width.
- Standard length 5m per roll. The length also can be customized.
| PN | S006120BB1LZ | S006120BC1LZ |
| Voltage | DC12V | DC24V |
| LED Type | SMD 2835 | SMD 2835 |
| Cutting unit | 25mm/3LED | 50mm/6LED |
| LED Quantity | 120LEDs/m | 120LEDs/m |
| Color | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Lumen | W:641m | W:641m |
| Dimension | 5000*6mm | 5000*6mm |
| Materiar | FPC | FPC |
| Power | 9.6W/m | 9.6W/m |
| IP Rate | IP20/IP64/IP65/IP67 | IP20/IP64/IP65/IP67 |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

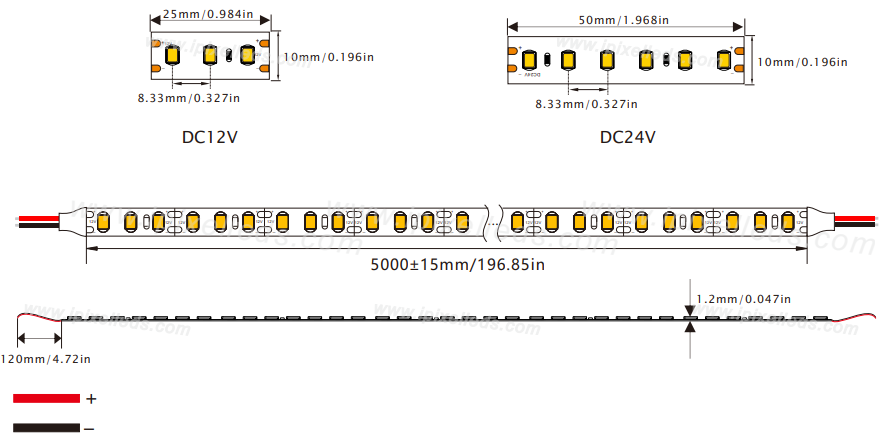

Dimension (unit:mm)
