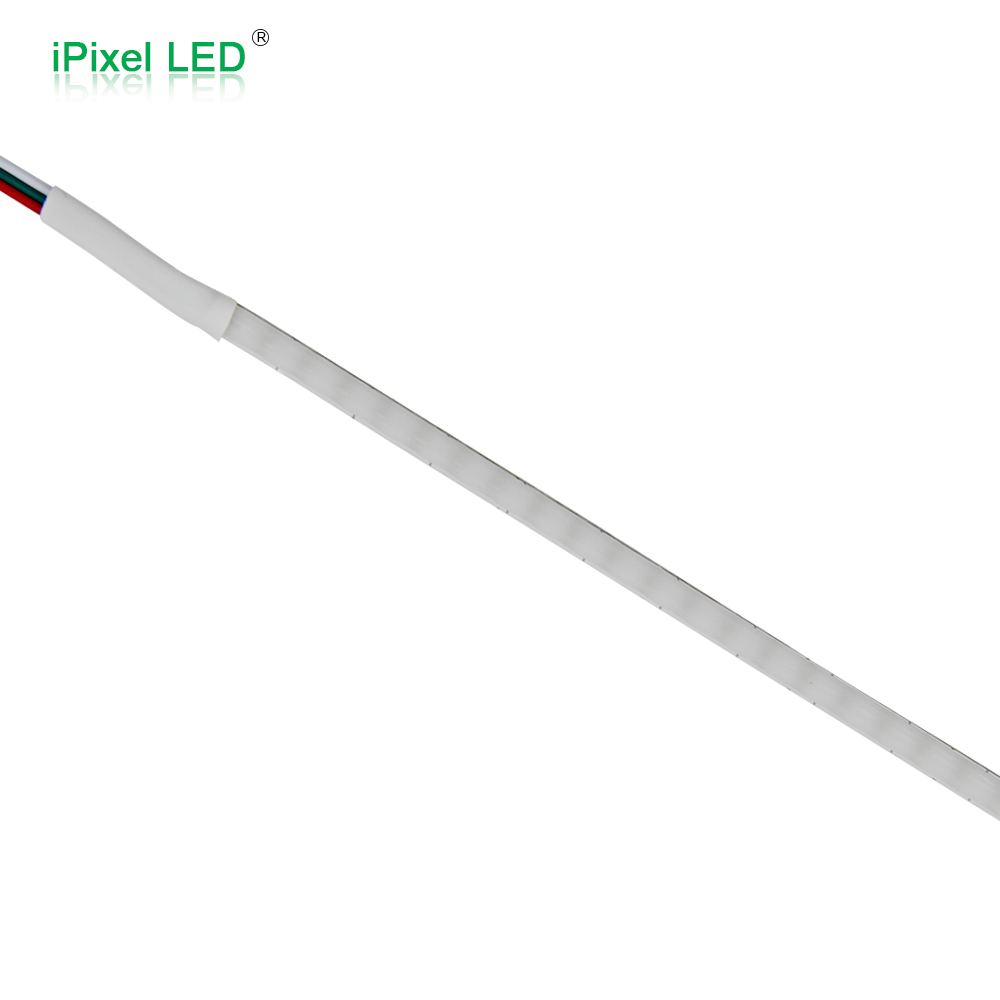

-This is a COB LED strip,Super Narrow 160LEDs/m
-The chip mounted on FPC directly,uniform light no hot spot /shadow
-Input voltage is DC5V

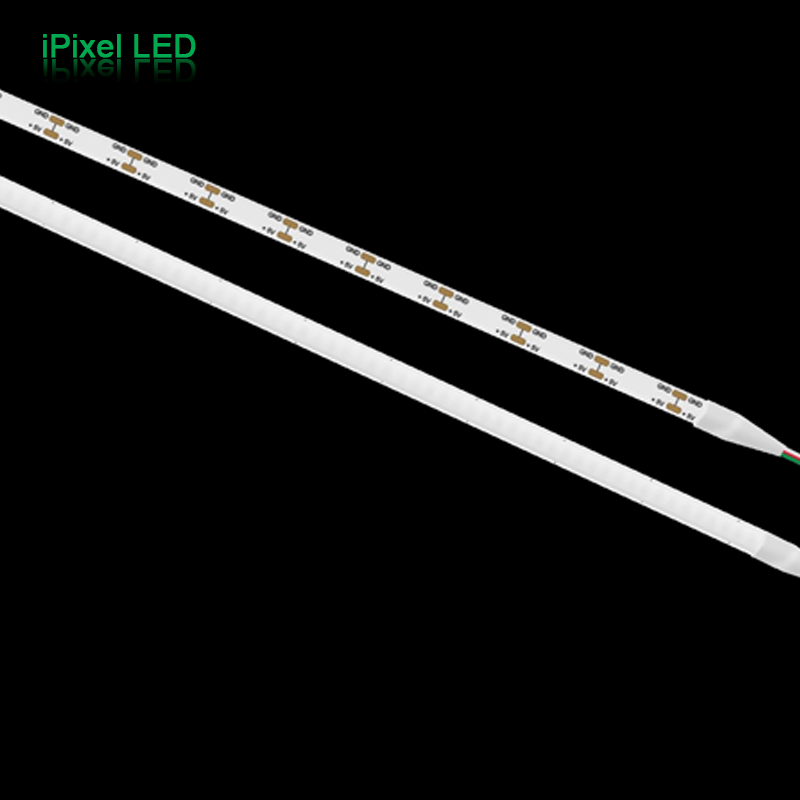

-Flexible PCB,the FPCB color is white
-The FPCB width is 2.7mm
-Standard 1M/roll, length can be customized
| PN | S003160ZA3SF |
| Voltage | DC5V |
| LED Type | RGB COB |
| LED Quantity | 160LEDs/m |
| Beam Angle | 140° |
| Luminance(lm/m) | R:50 G:110 B:30 |
| Control | SPI-WS2811&MW1838EA |
| Dimension | 1000x2.7mm |
| Cutting unit | 12.5mm |
| Materiar | FPC |
| Power | 10W/m |
| IP Rate | IP20 |
| O.T | -25℃ ~ 60℃ |

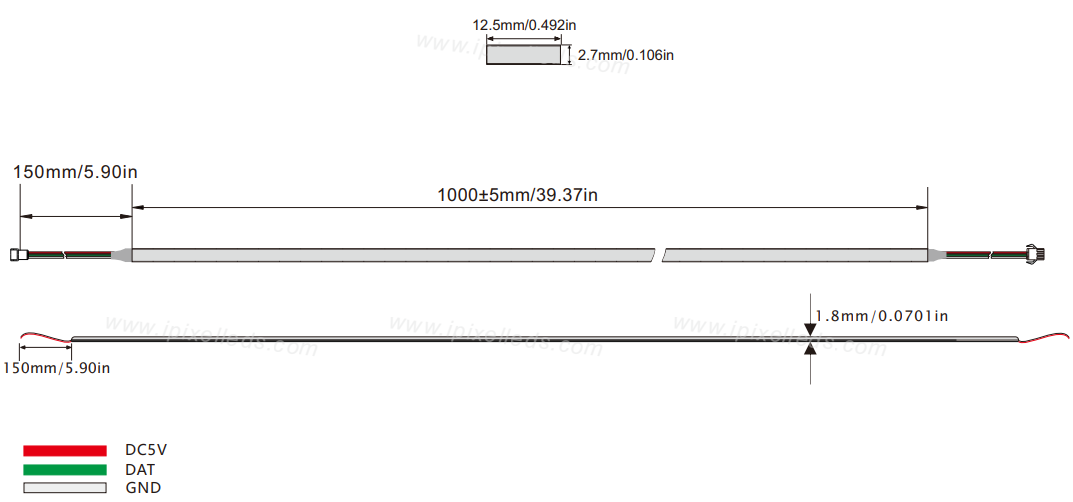

Dimension (unit:mm)
