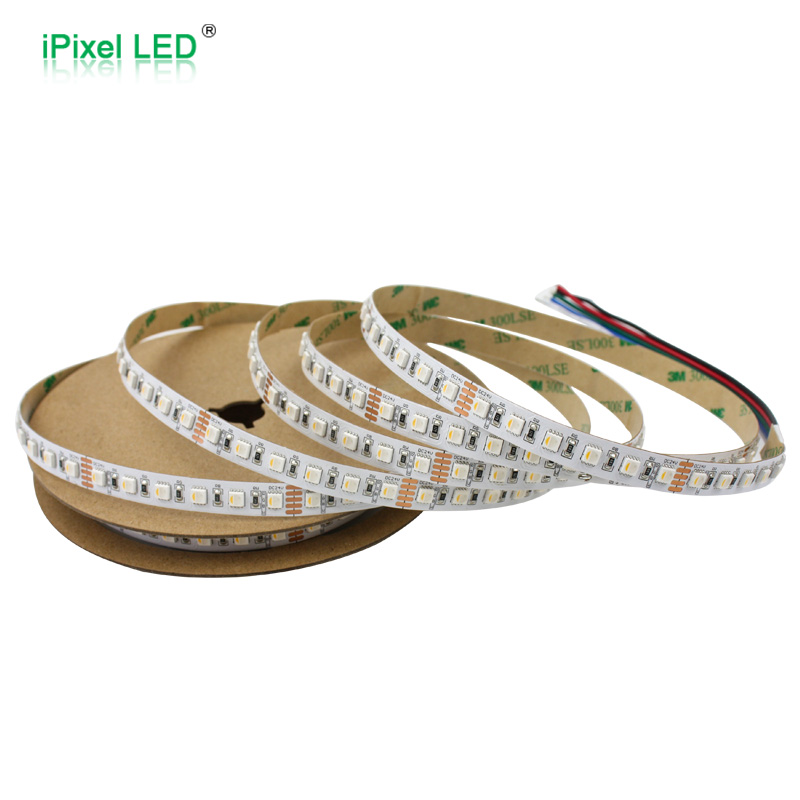

3M tape attached on backside of FPC
| PN | S010096TC4PZ |
| Voltage | DC24V |
| Power | 15W/m |
| LED Type | SMD 4040 |
| LED Quantity | 96LEDs/m |
| Color | RGB+W:3000K/4000K/6500K |
| Dimension | 5000*10mm |
| Cutting unit | 62.5mm |
| Wavelength | R:620-625 G:520-525 B:460-465nm |
| Luminance/M | Ｒ:91 Ｇ:333 Ｂ:65 W:290 |
| Materiar | FPC |
| IP Rate | IP20 / IP64 / IP65 / IP67 |
| Protocol | PWM |
| O.T | -25℃ ~ 60℃ |

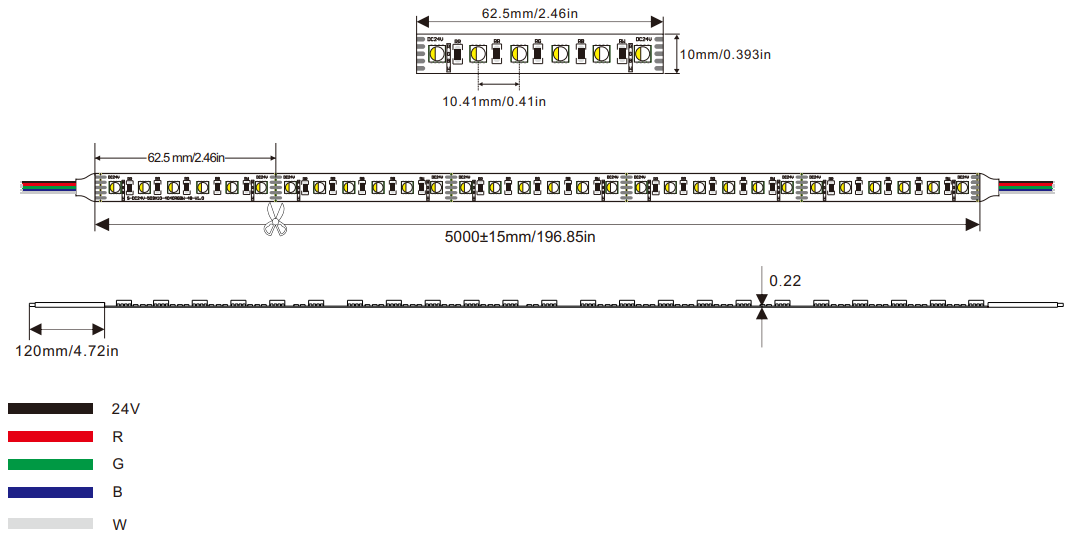

Dimension (unit:mm)
