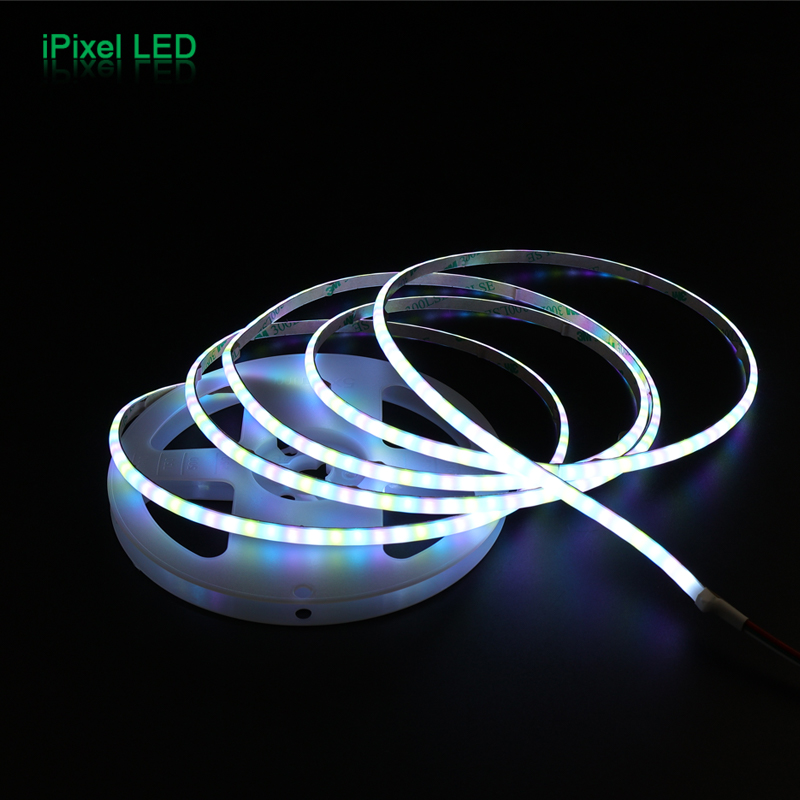

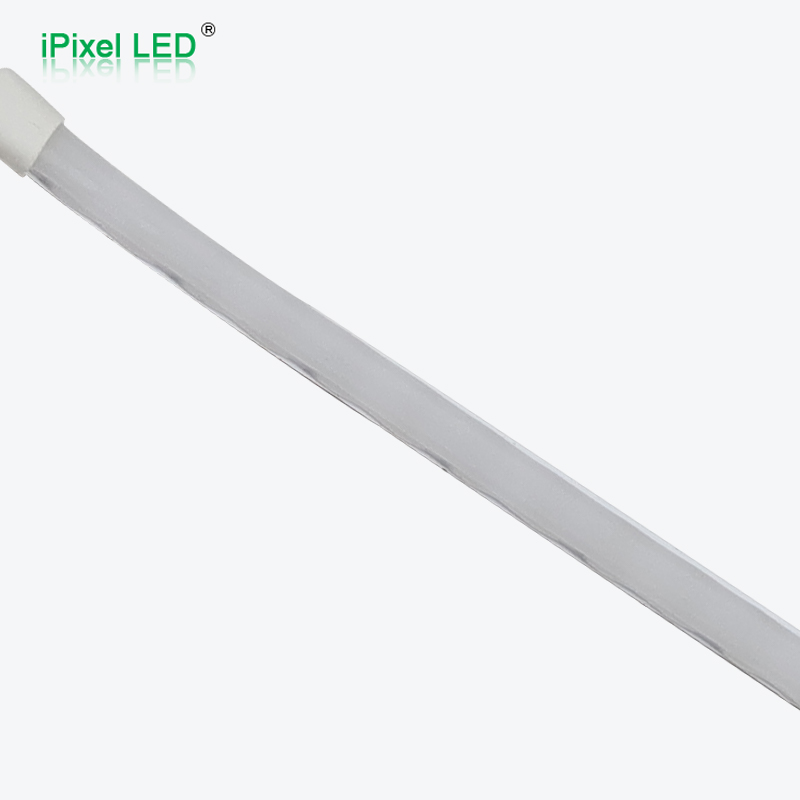

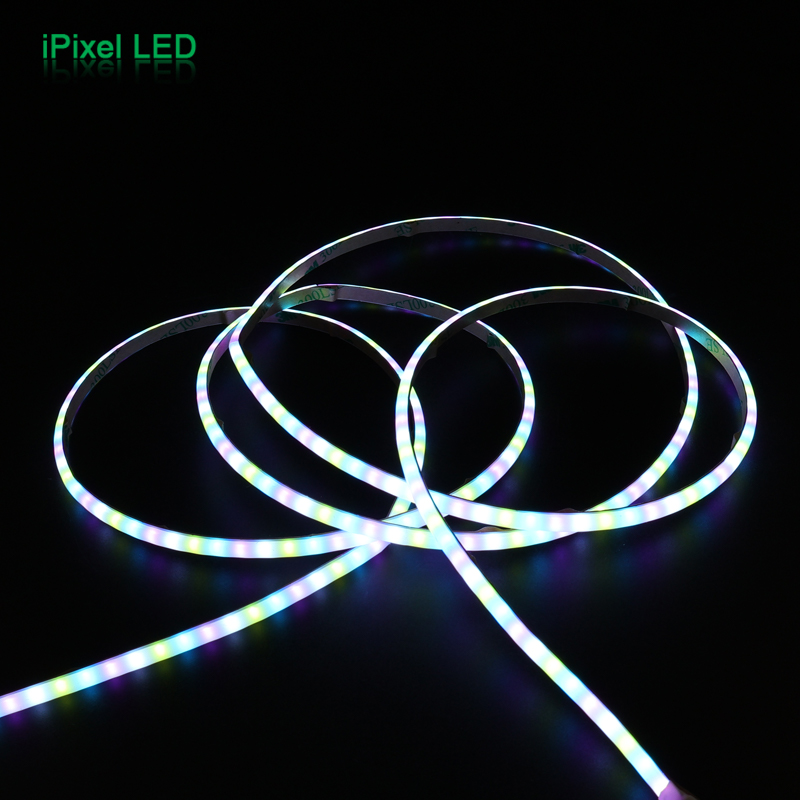

5mm Super Narrow Addressable RGB COB LED Strip

-This is a COB LED strip,Super Narrow 160LEDs/m
-The chip mounted on FPC directly,uniform light no hot spot /shadow
-Input voltage is DC5V
-Flexible PCB,the FPCB color is white
-The FPCB width is 5mm

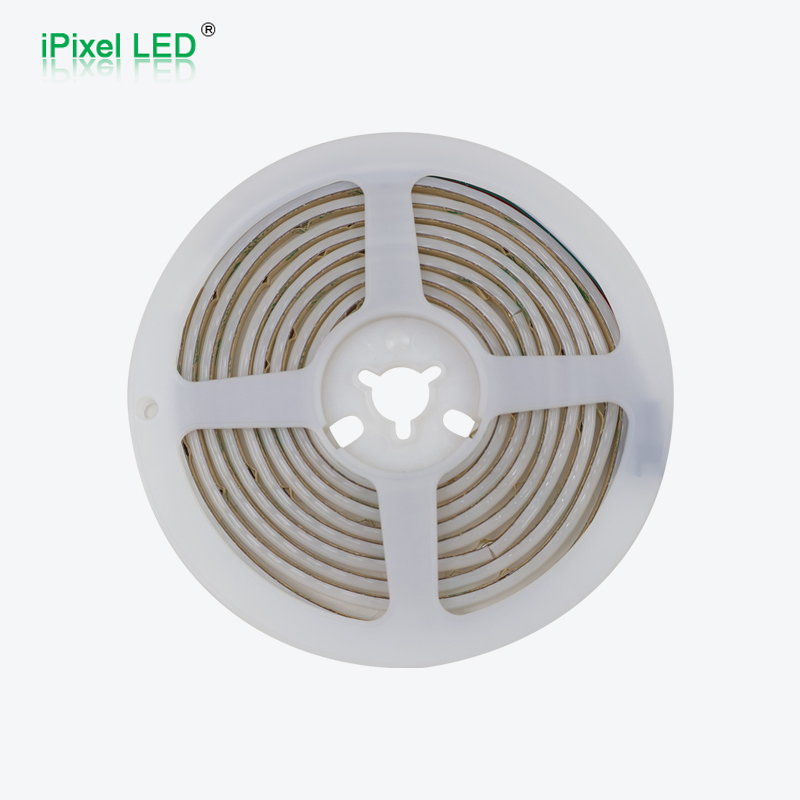

-Standard 1M/roll, length can be customized

Datasheet download.jpg



Product Parameter

  PN
  S005160ZA3SF
  S005160ZB3SF
  Voltage
  DC5V
  DC12V
  Power
  13W
  6W
  LED Type
  COB RGB
  COB RGB
  LED Quantity  160LEDs/m
  160LEDs/m
  Beam Angle
  140°
  140°
   Luminance(lm/m)   R:50 G:110 B:30
   30
  Control
  SPI-WS2811&MW1838EA
  SPI-MW1838EA
  Dimension
  1000x5mm
  1000x5mm
  Cutting unit
  12.5mm
  12.5mm
  Materiar  FPC  FPC
  IP Rate
  IP20  IP20
  O.T  -25℃ ~ 60℃  -25℃ ~ 60℃

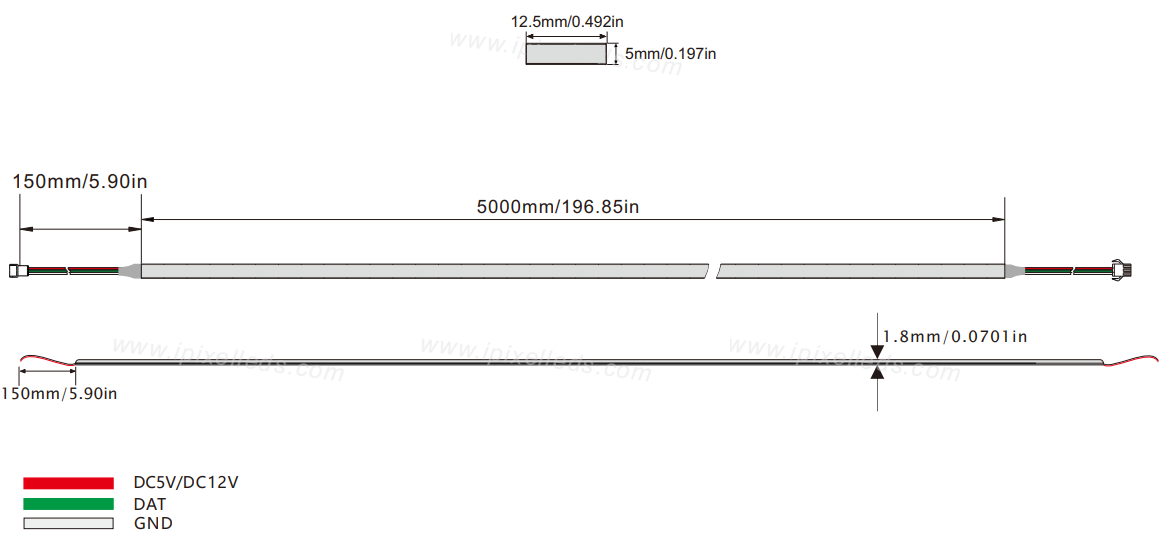

Dimension (unit:mm)
