PWM controller available
Input voltage DC12V/24V
Flexible PCB, FPC color: white
FPC is 1+2 Oz copper thickness , PCB width is 10mm
5m per roll, length can be customized
| PN | S010840ZC3PZ(C) |
| Voltage | DC24V |
| Power | 12W/m |
| SMD Type | COB |
| LED Quantity | 840LEDs/m |
| Dimension | 5000*10mm |
| Cutting length | 33.3mm |
| Color | W:3000K/4000K/6500K |
| Lumens(lm/m) | R: 126 G:385 B:58.5lm |
| IP Rate | IP20/IP65 |
| O.T | -25℃ ~ 60℃ |

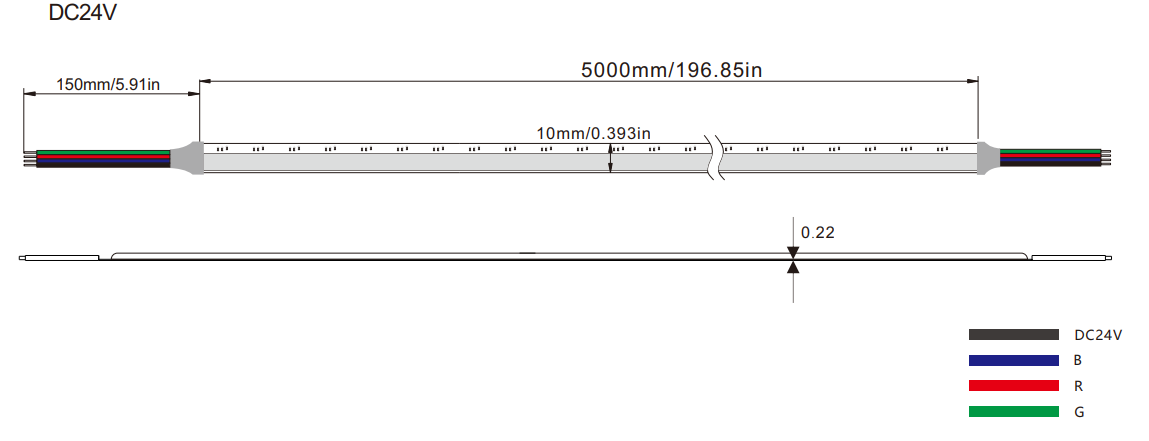

Dimension (unit:mm)
