-144 LEDs/m & 144 Pixels/m high-density design
-HC2824 IC with individual pixel control
-Full RGB dynamic lighting effects
-24V DC input for stable performance
-Cuttable every 6.94mm (1 LED per section)
-120° wide beam angle -Flexible FPC construction
| PN | S012144CC3SB7 |
| Voltage | DC24V |
| LED Type | SMD5050RGB |
| LED Quantity | 144LEDs/m |
| IC Quantity | 144 IC/m |
| Dimension | 1000*12mm |
| Protocol | SPI-HC2824 |
| IP | IP20/IP64/IP65 |
| Power | 24W/m |
| O.T | -25℃ ~ 60℃ |

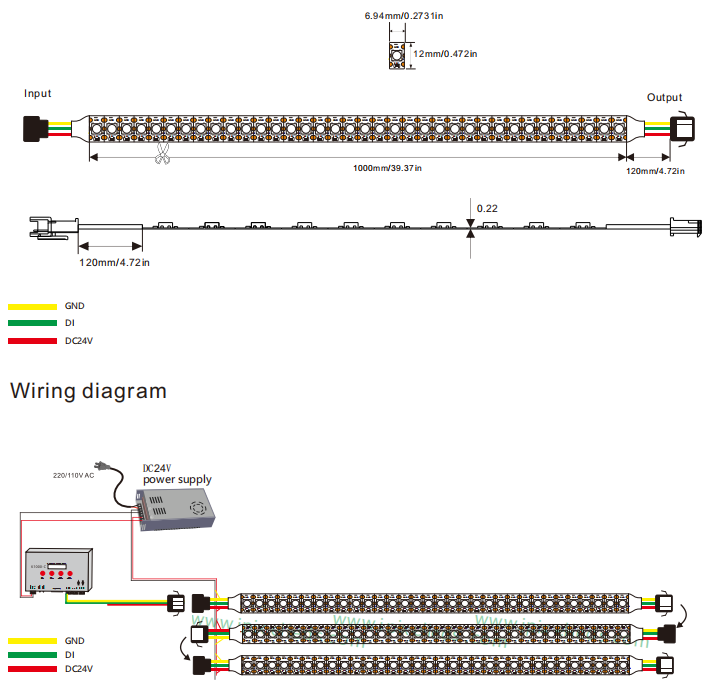

Dimension (unit:mm)
