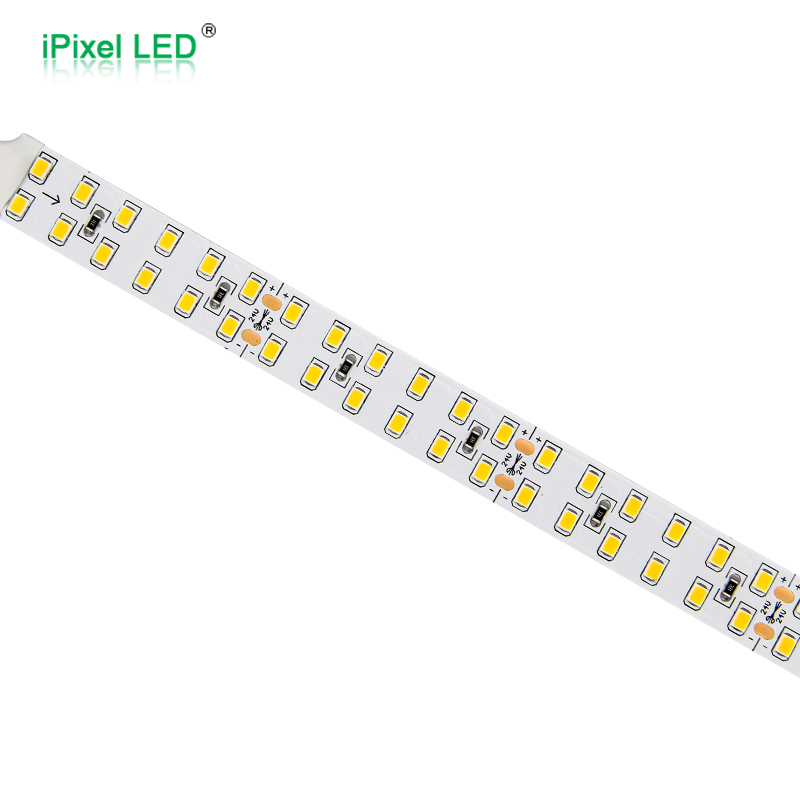

2835 LED chip, 240LEDs/m, double row high luminance efficiency and high Ra.
Input voltage DC24V.
Flexible PCB, FPC color: white, 15mm PCB width.
Standard length 5m per roll,The length also can be customized.
| PN | S015240BC1LZ | Luminance efficiency | ||
| Voltage | DC24V | Ra | Ra80 | Ra90 |
| LED Type | SMD 2835 | lm/W | 87lm/W | 76lm/W |
| LED Quantity | 240LEDs/m | ☆2300K | ☆1471lm | ☆1228lm |
| Dimension | 5000*15mm | ☆2500K | ☆1486lm | ☆1228lm |
| Cutting Length | 50mm | ☆2700K | ☆1555lm | ☆1348lm |
| SDCM | <5, 3 step 1 bin | 3000K | 1607lm | 1393lm |
| Power | 19.8W/m | ☆3500K | ☆1642lm | ☆1423lm |
| Beam Angle | 120° | 4000K | 1728lm | 1498lm |
| IP Rate | IP20/IP65 | ☆5000K | ☆1728lm | ☆1498lm |
| O.T | -25℃ ~ 60℃ | 6500K | 1676lm | 1453lm |
☆Indicates that this item needs customization

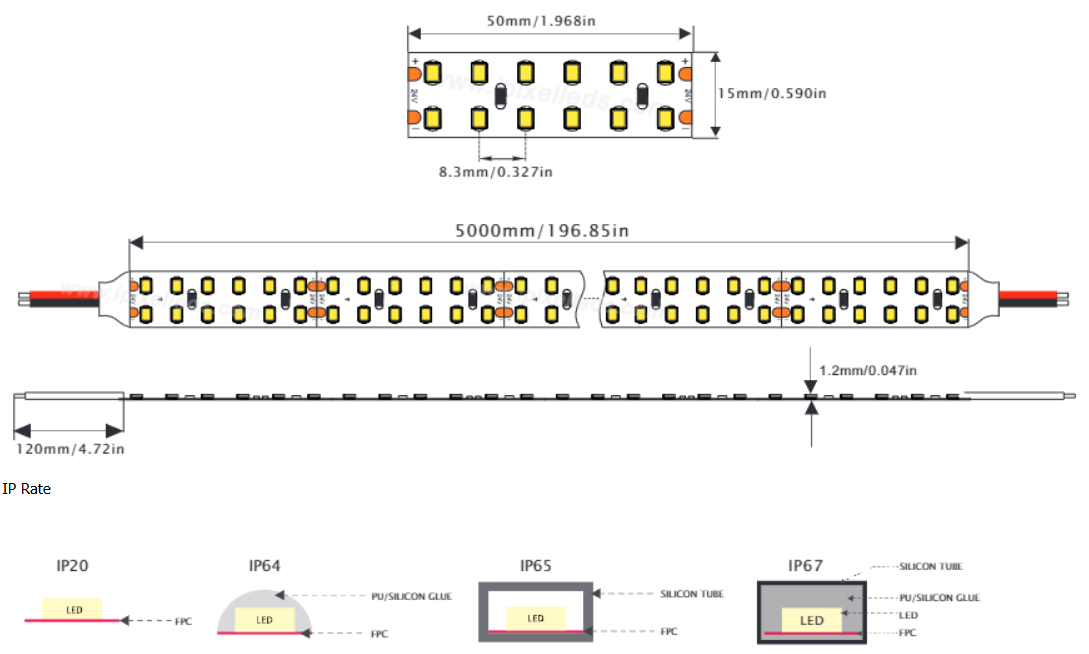

Dimension (unit:mm)
IP Rate
