This flex led strip uses SMD2835 RGB LED chip,
120leds/m, single row led chip
20Pixels per meter, SPI control, 6LEDs per section
DC24V constant voltage operation
Flex PCB with white color
1+2 ounce copper FPC, 10mm width
5 m per reel, length can be customized
| PN | S010120BC3SM |
| Voltage | DC24V |
| LED Type | SMD 2835 |
| LED Quantity | 120LEDs/m |
| Color | RGB |
| Dimension | 5000*10mm |
| Cutting unit | 50mm |
| Luminance/M | R:78 G:334 B:64lm |
| Power | 14.8W/m |
| Protocol | SPI/TM1804 |
| O.T | -25℃ ~ 60℃ |

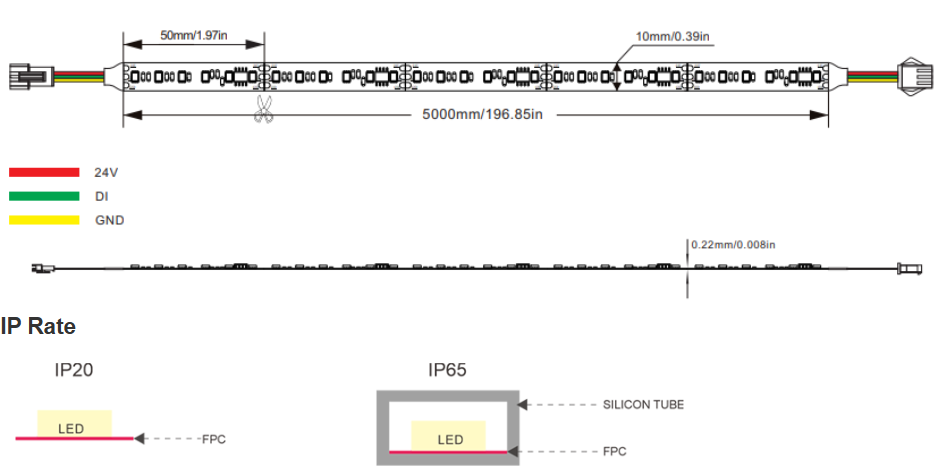

Dimension (unit:mm)
